Yokogawa Pressure Clamp Terminal Block ATC5S-00

Terminal Block can be used for I/O Modules (FIO) of CENTUM VP.

For the Terminal Block that can be used for I/O Modules with Built-In Barrier.

STANDARD SPECIFICATIONS

Variation of Connection

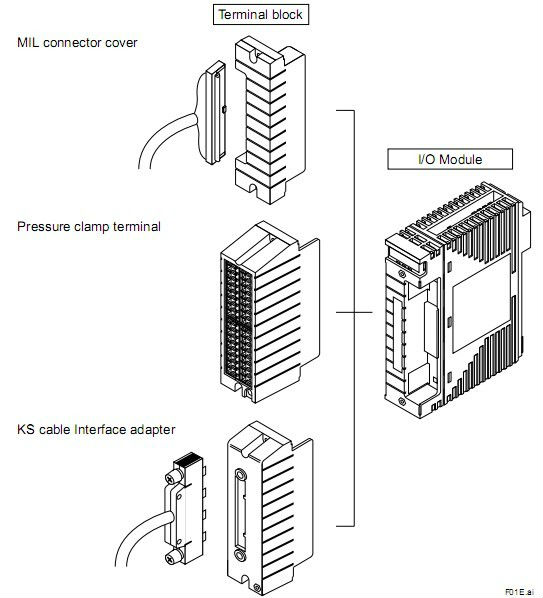

I/O Modules can be connected to field devices with terminal block.

Three types of terminal blocks are available: Pressure Clamp Terminal, KS Cable Interface Adapter, MIL Connector Cover.

There is a pressure clamp terminal with surge absorber to preserve I/O modules from surge immunity.  (Conforms to EMC standards EN 61000-6-2). Yokogawa Pressure Clamp Terminal Block ATC5S-00

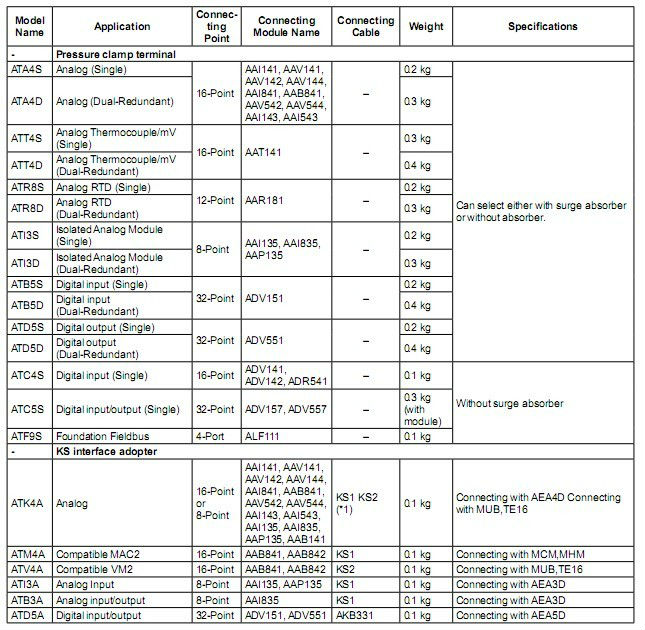

Terminal block

*1:  Please refer to FIO System Overview (GS 33K50F10-50E, GS 33K55F10-50E) for the combination of connecting cable and terminal board.

MODEL AND SUFFIX CODES

Pressure Clamp Terminal Block

Yokogawa Pressure Clamp Terminal Block ATC5S-00
